A visual index of real pultruded-FRP and aluminium sections. Each render and weight is generated deterministically — open any in the tool to edit it.

FRP pultruded profile sizes →Aluminium extrusion cross-section →T-slot profile dimensions →

I 240×120×1210.40 kg/m

FRP · Grey

I 200×100×107.22 kg/m

FRP · Grey

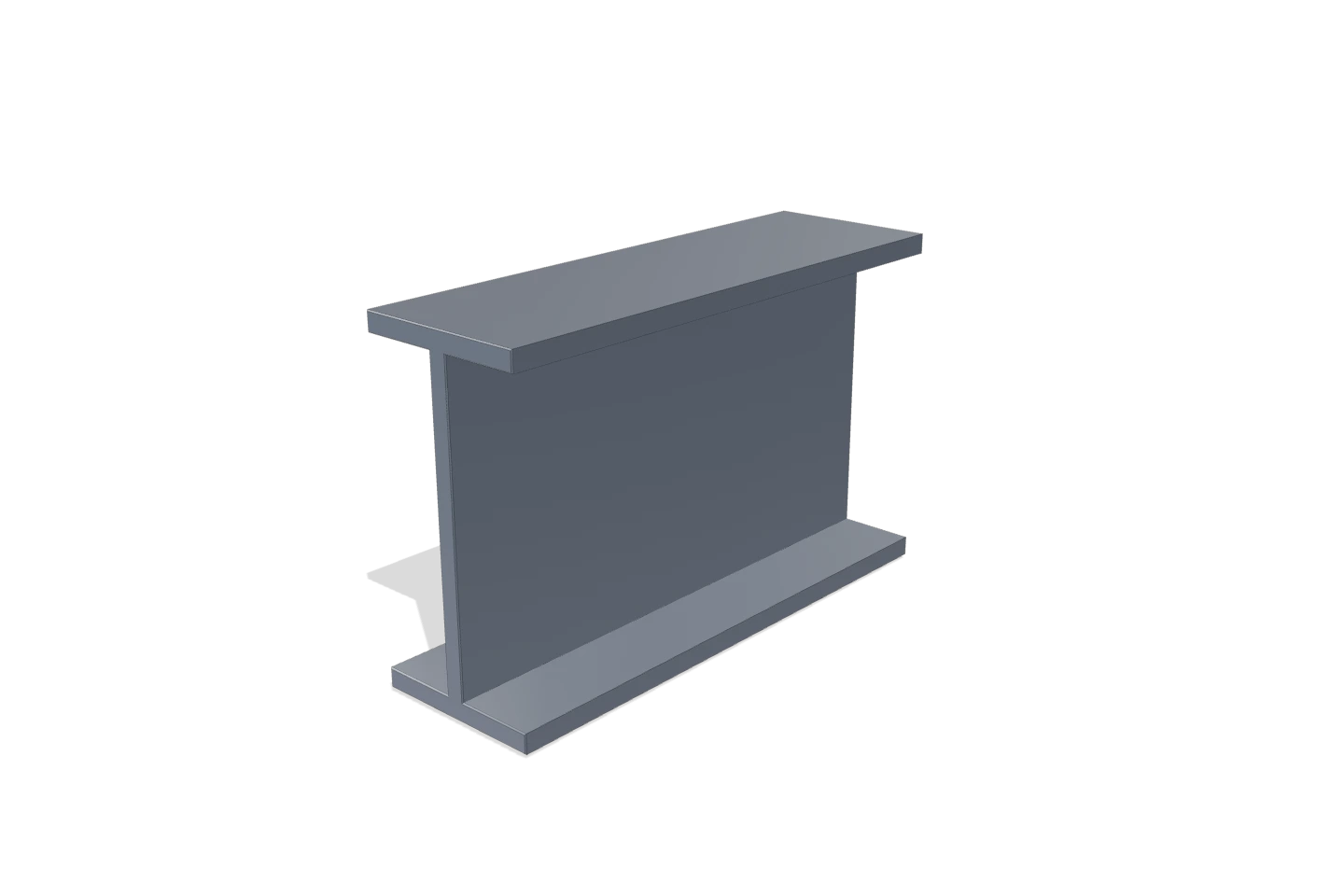

I 120×60×62.60 kg/m

FRP · Grey

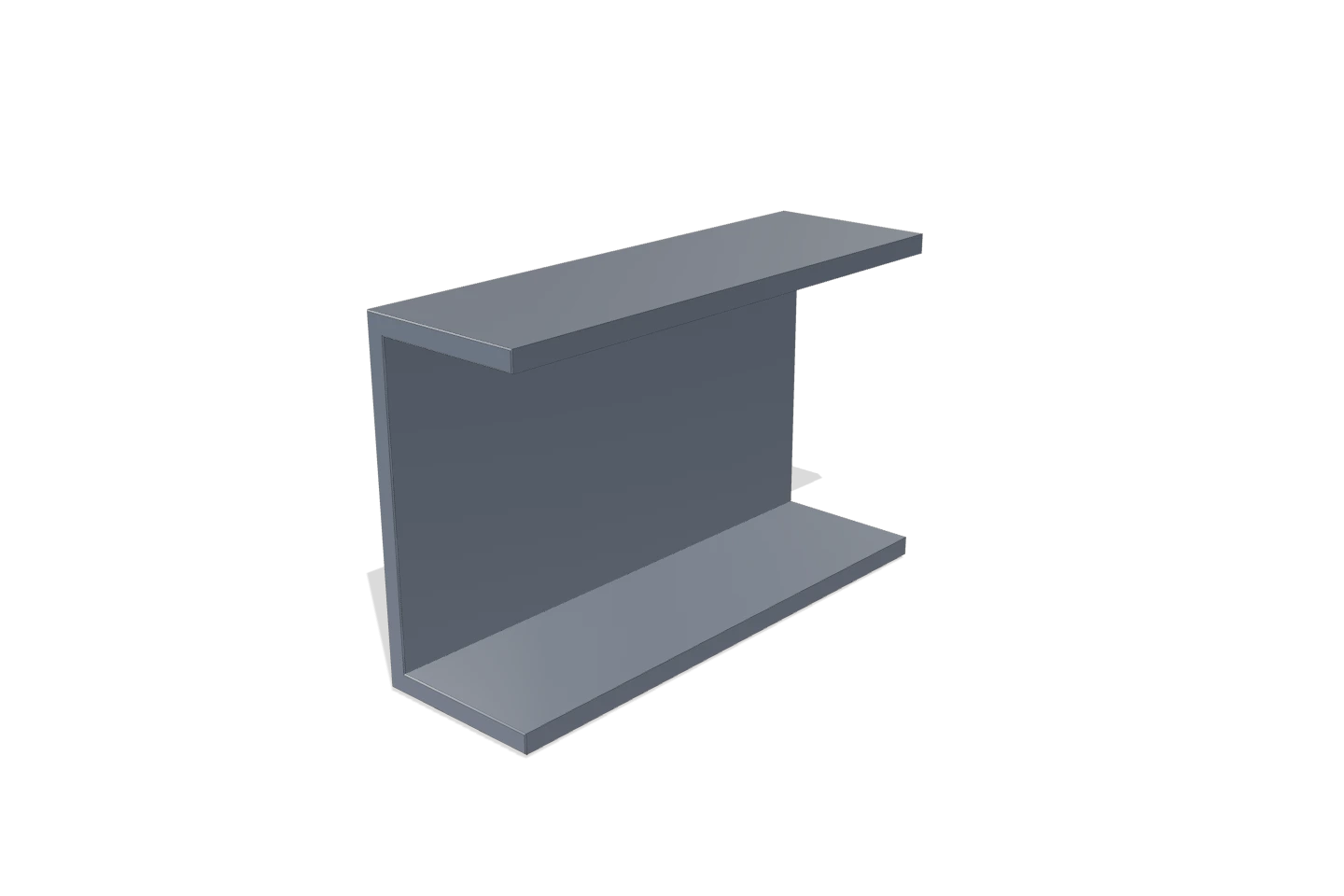

CH 100×50×51.80 kg/m

FRP · Grey

CH 200×60×126.75 kg/m

FRP · Grey

L 100×100×103.61 kg/m

FRP · Grey

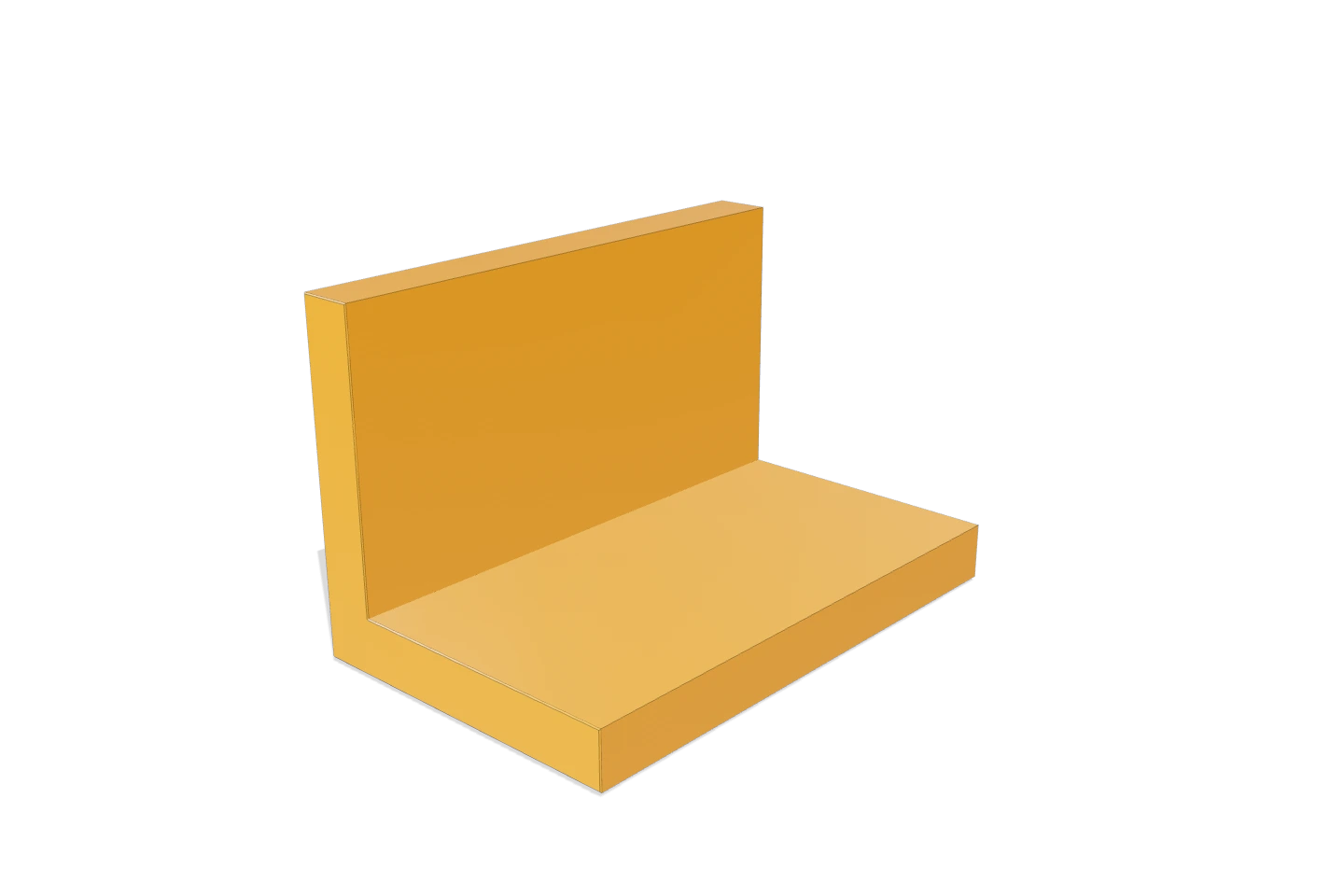

L 50×50×81.40 kg/m

FRP · Safety Yellow

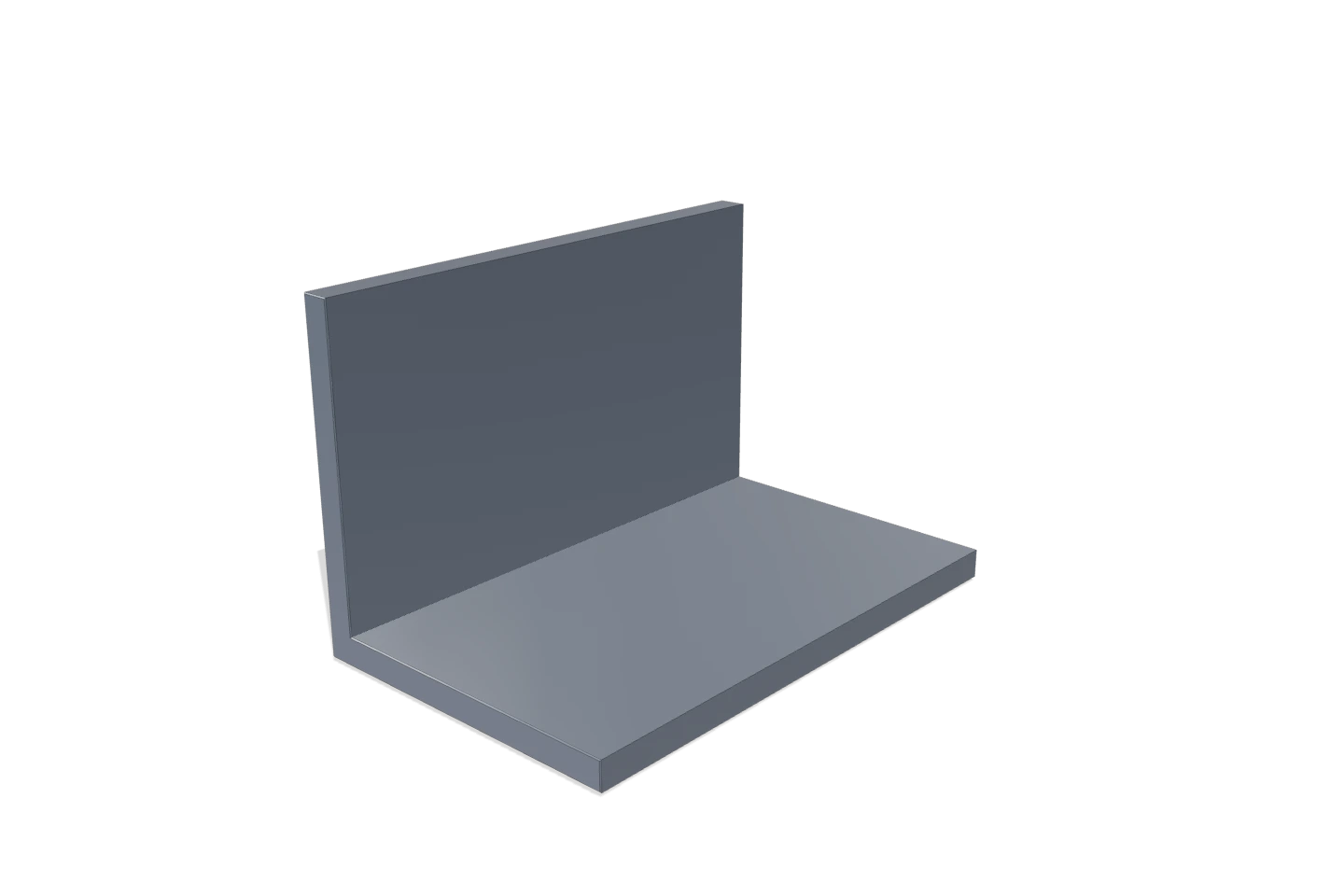

L 150×150×126.57 kg/m

FRP · Grey

SHS 100×100×64.29 kg/m

FRP · Grey

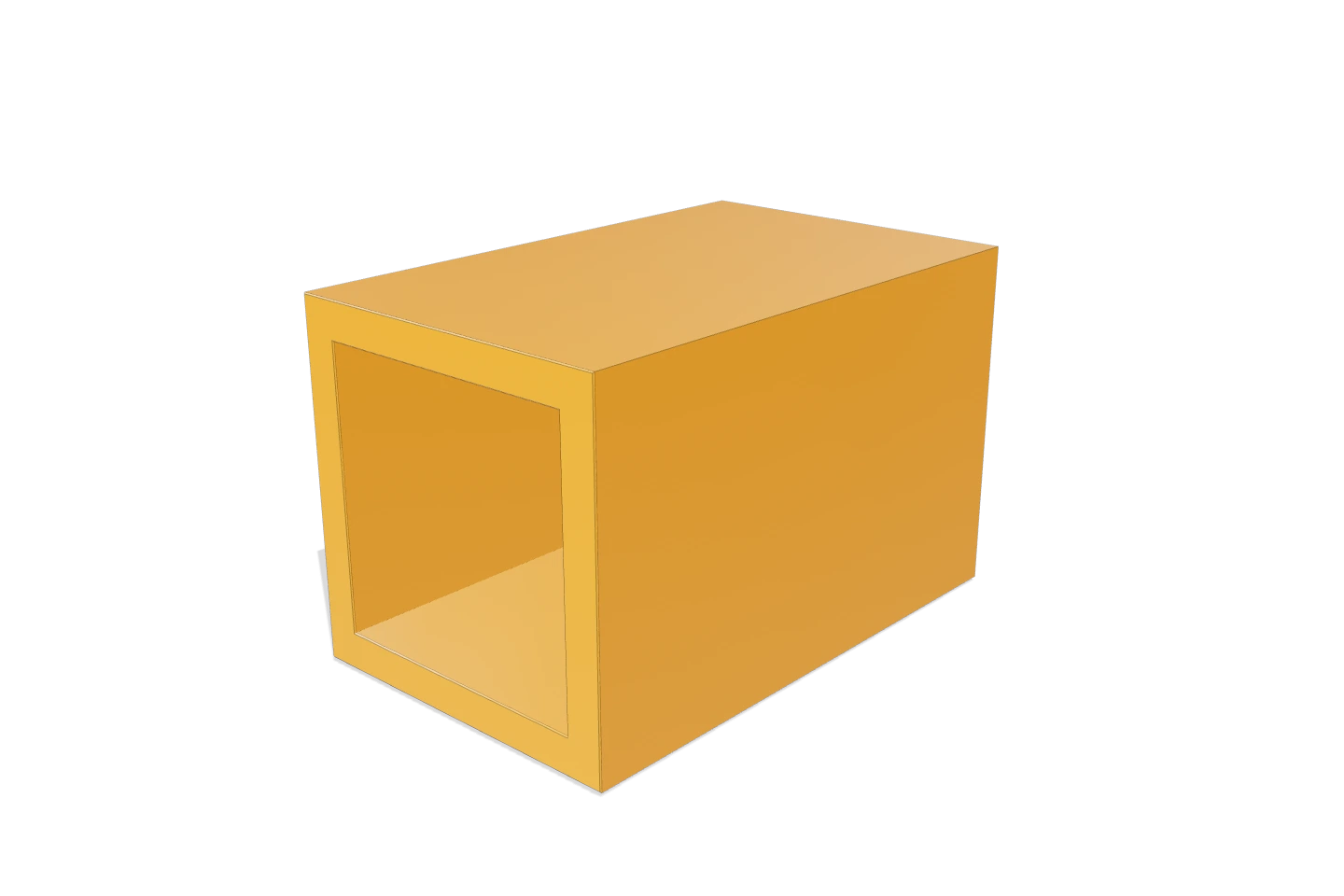

SHS 50×50×51.71 kg/m

FRP · Safety Yellow

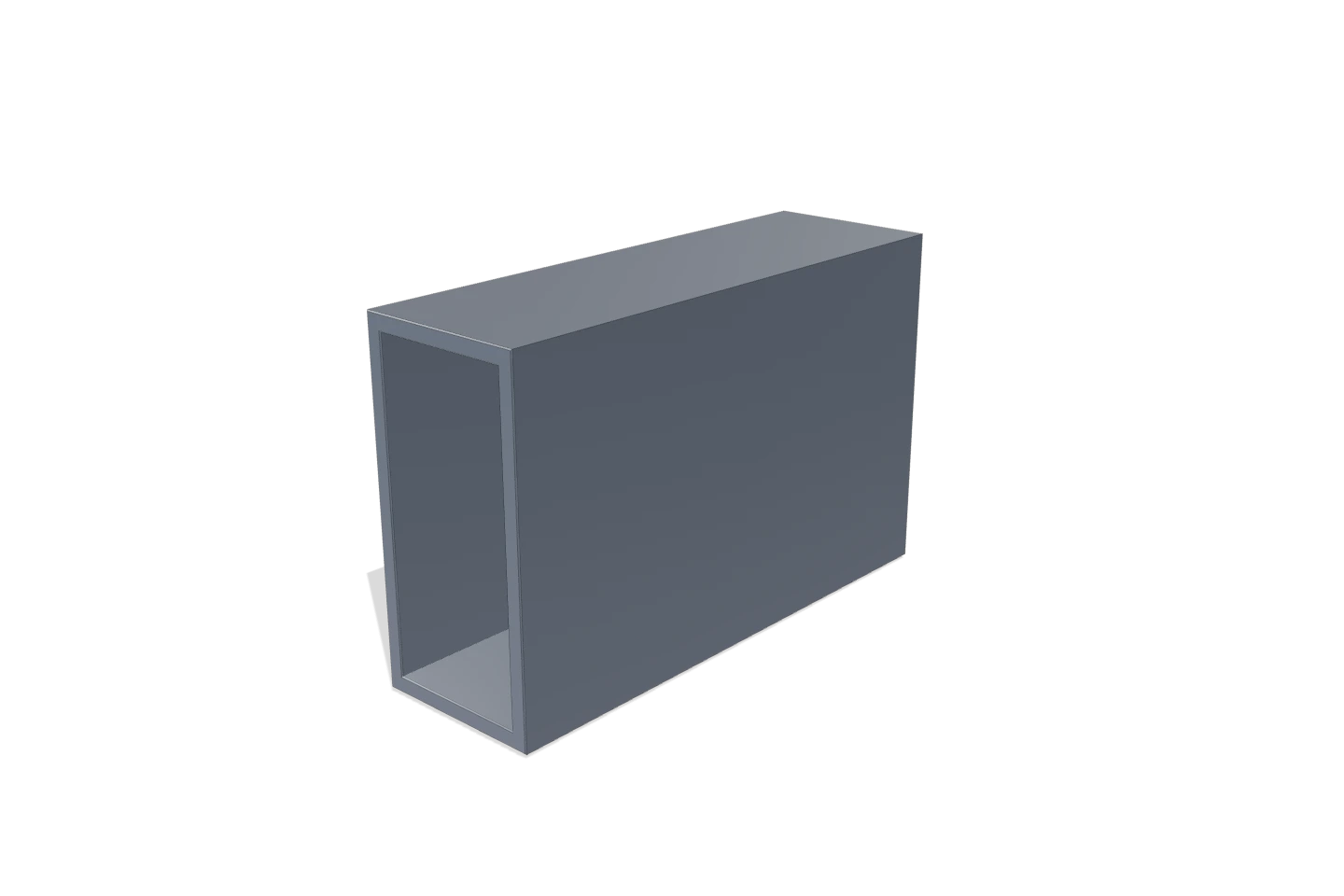

RHS 200×100×88.63 kg/m

FRP · Grey

RHS 100×50×42.16 kg/m

FRP · Grey

CHS ⌀100×63.36 kg/m

FRP · Grey

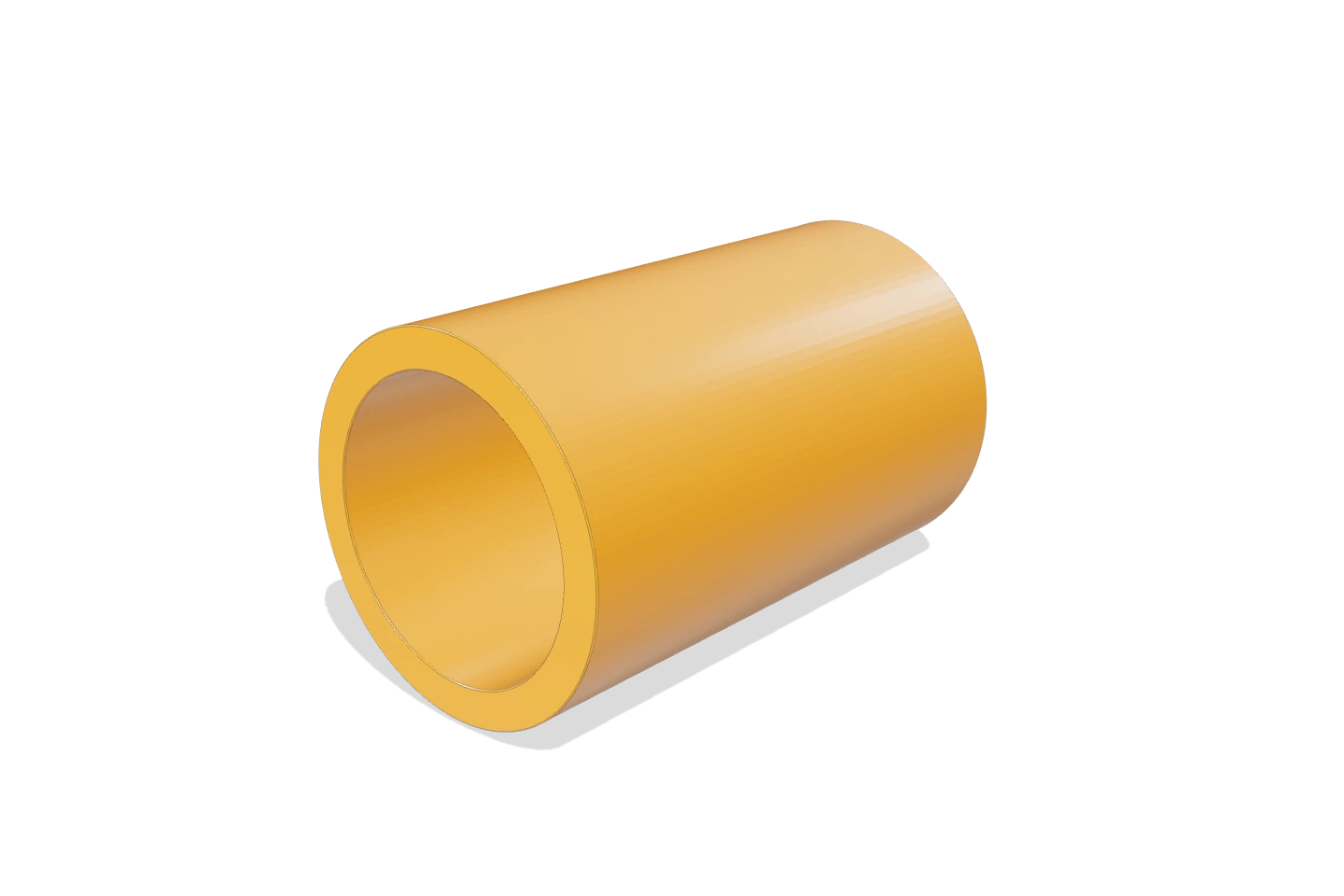

CHS ⌀50×51.34 kg/m

FRP · Safety Yellow

ROD ⌀250.98 kg/m

FRP · High-Strength

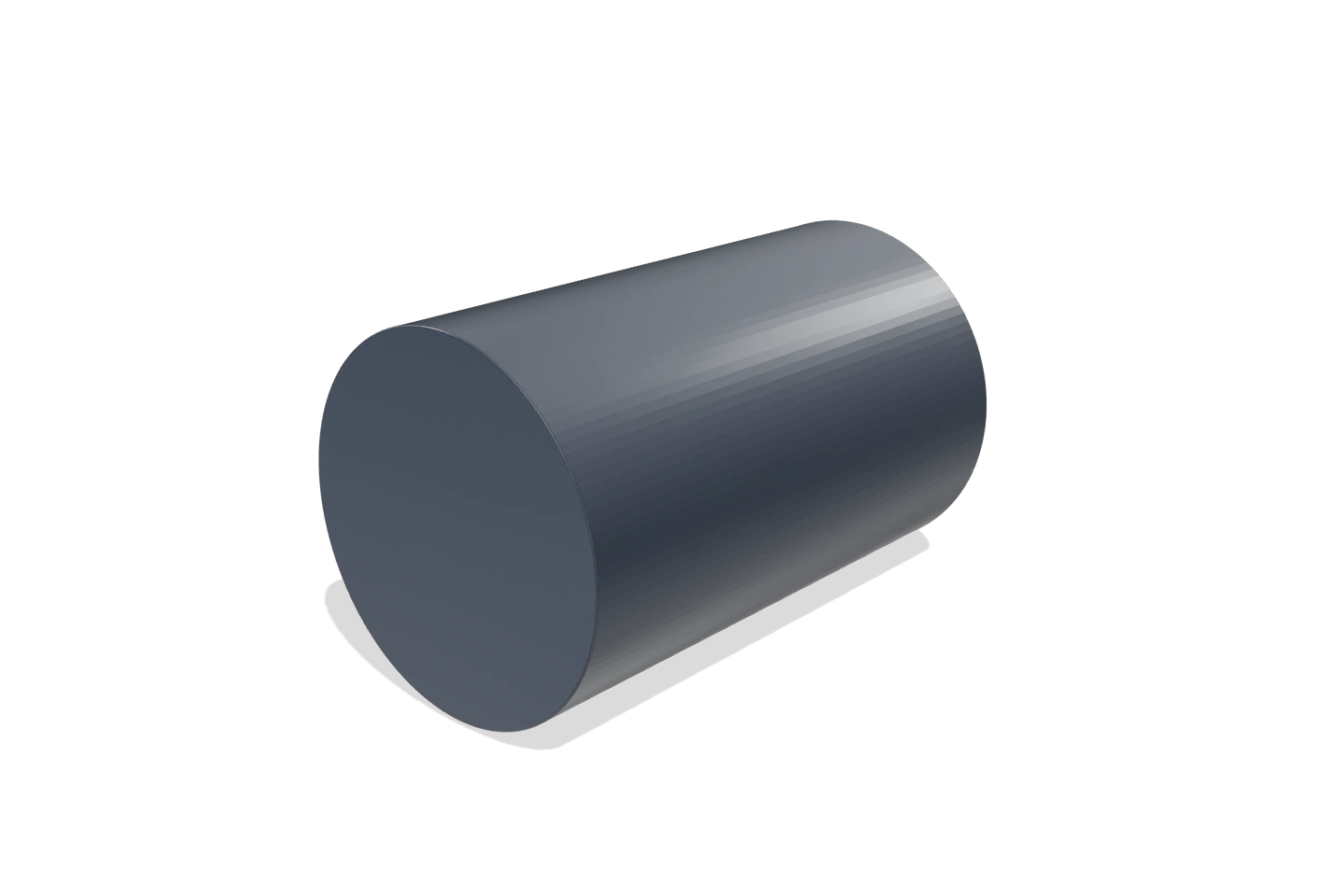

ROD ⌀200.63 kg/m

FRP · High-Strength

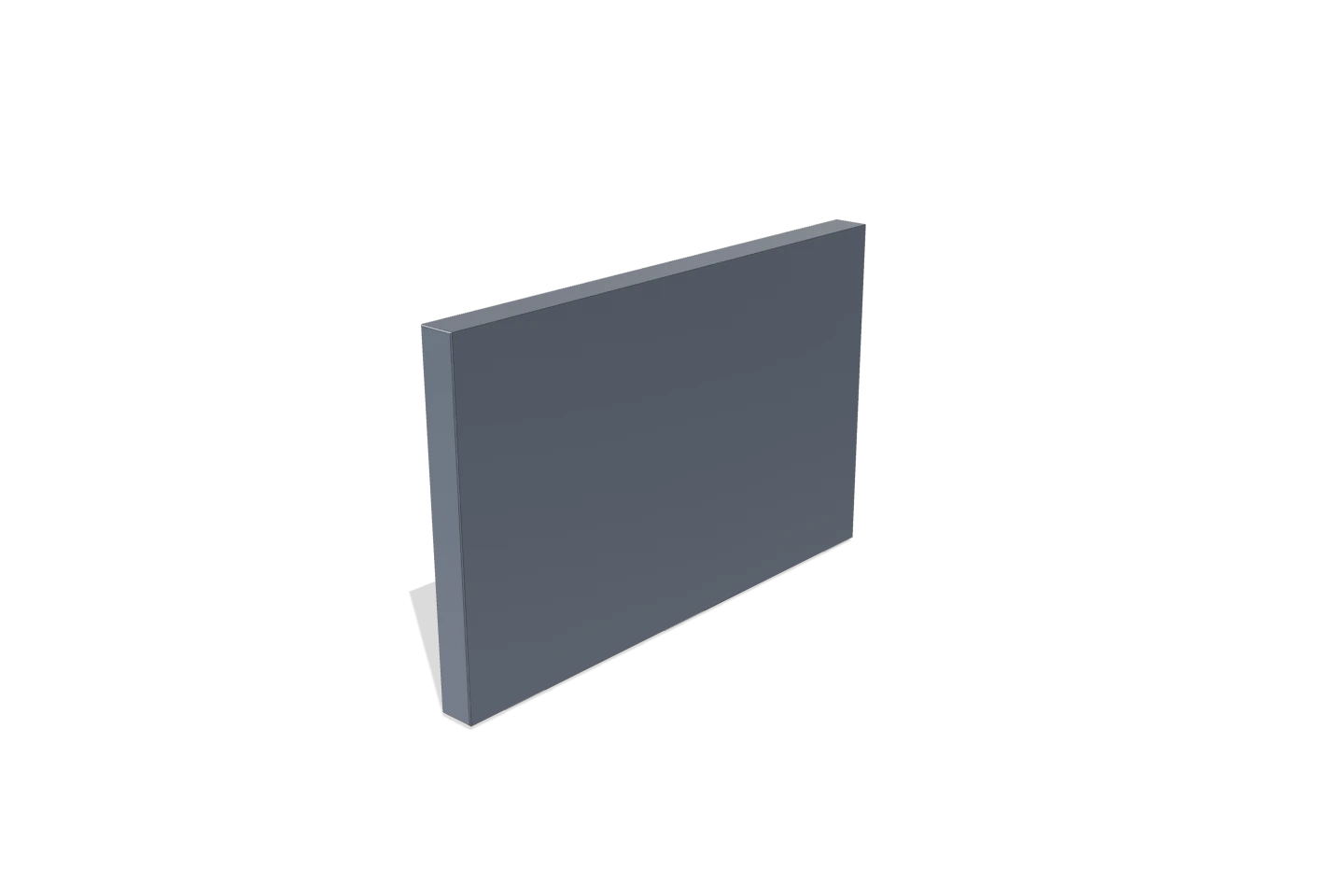

FLAT 100×101.90 kg/m

FRP · Grey

FLAT 50×60.57 kg/m

FRP · Grey

40×40 T-Slot1.57 kg/m

Anodized Aluminium

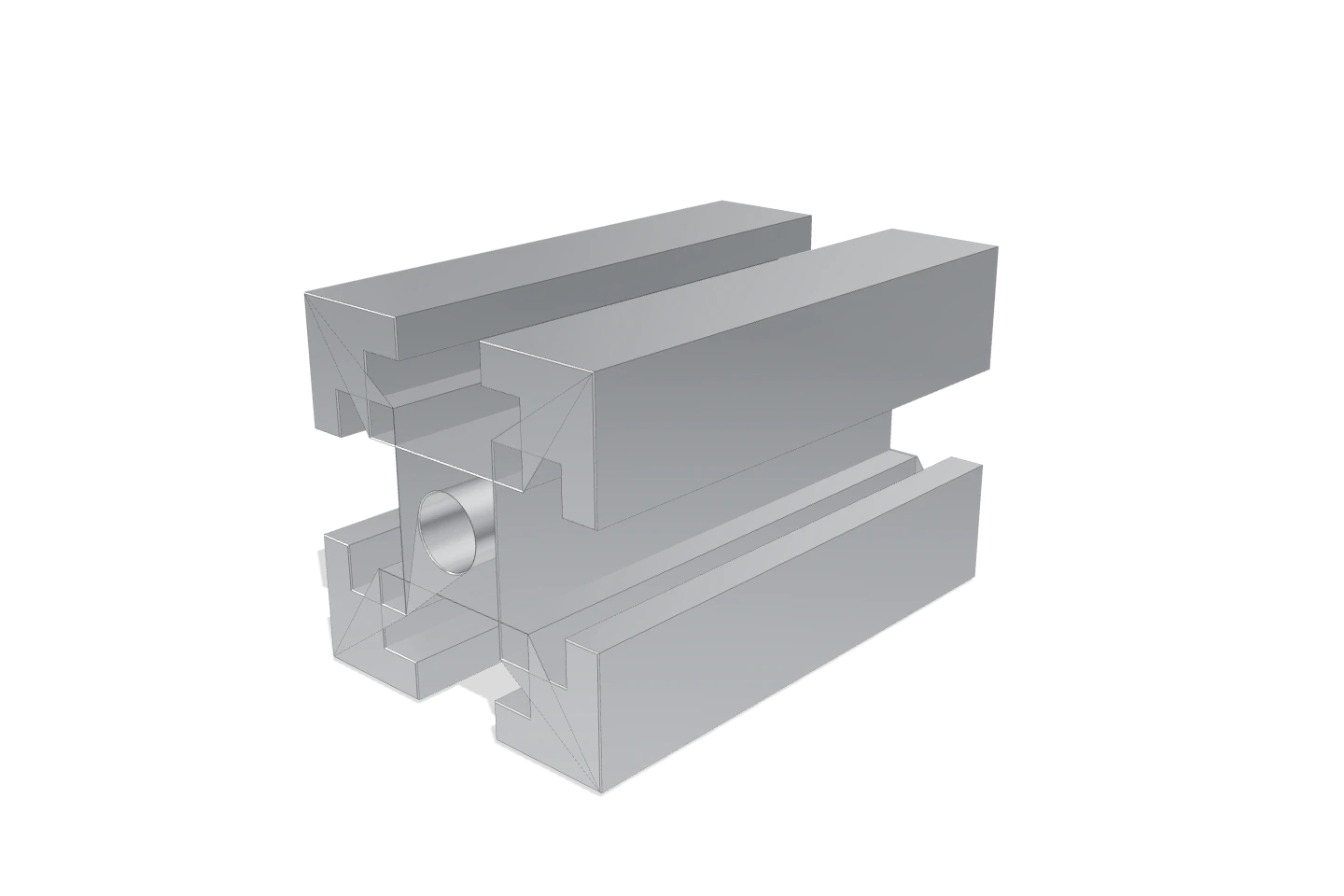

20×20 T-Slot0.38 kg/m

Anodized Aluminium

Dimensions and published weights are catalogue-level engineering data, shown as neutral sample sections to demonstrate the generator. Computed section properties are estimates — verify against certified data before release.
